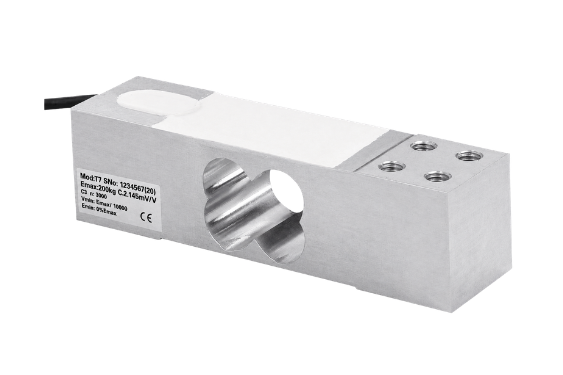

T7 Single Point

The cost-effective T7 single point load cell is manufactured from high quality aluminium alloy and its design provides for high accuracy weight measurement, even with off-centre loads.

It is suitable for platforms of size 400mm x 400mm maximum (with the load cell installed centrally under the platform).  Potted and silicone sealed to provide IP66 protection, it features a 4-wire screened PVC cable as standard.

Make an enquiry about this cost-effective single point load cell.

Key features:

• Capacity range: 100kg-300kg
• High quality aluminium alloy, corrosion resistant
• 3000 divisions performance
• Fully potted and sealed to IP66
• 400 x 400mm max. platform size (with load cell placed centrally under platform)
• Shielded PVC cable

Typical applications:

• Small platforms up to 400mm x 400mm
• Small buckets and hoppers
• Bagging and dosing machines
• Multi-head weigher machines
• Filling systems / scales
• Checkweighers
• Personal scales
• Medical scales

Ask a question about this competitively priced, high accuracy single point load cell.
