XT1000 Indicator / Transmitter

The XT1000 is a high speed digital weight indicator / transmitter with an Omega/DIN rail mount configuration. With a speed of 2400 measurements/second and several connectivity options, it is the ideal solution for a very wide range of weighing applications, both static and dynamic.

Standard connections: 3 digital opto-isolated inputs, 3 digital opto-isolated outputs (all with status LEDs), serial RS232, serial RS485, MODBUS (RTU or ASCII).

Optional connections in addition to the above: Analogue outputs (e.g. 4-20mA) or Profibus^® DP or PROFINET I/O or EtherNet/IP^TM.

Designed for process weighing systems, as well as any machinery with a weighing function, it incorporates the latest digital electronics.  The instrument status is easily viewed using the 6-digit bright red LED display (10mm height) and status LEDs for tare, prefixed tare, zero and steady weight.

The XT1000 has OIML R76 and EN 45501:2015 approvals.

Ask us a question about this advanced weight indicator / transmitter.

Calibration can be achieved by using live weights, or with the load cell capacity and sensitivity data in mV/V allowing for fast start-up without live weights.

For a panel mount version with the same specification, see the XT2000 indicator / transmitter.  For a stackable DIN rail version, see the XT3000 indicator / transmitter.

Typical applications:

• Industrial weighing scales
• Weighing and level measurement of tanks and silos
• Transmission of weight to a PLC
• Filling and dosing machines
• Checkweighers
• Animal weighing
• High speed sorting scales
• Multihead weighers
• Crane / lifting equipment overload control

Key features:

• High resolution: 24-bit A/D converter with 16,000,000 internal divisions
• 6 digit, 10mm bright red LED display (range -99999 to 999999)
• 2400 weight measurements per second from the load cell(s)
• Approval to OIML R76 and EN 45501:2015 (NAWI)
• Status LEDs for weighing functions, digital inputs and digital outputs
• Several XT1000 units can be connected in the same bus network
• Inbuilt membrane keyboard for configuration and calibration
• Selectable digital filters
• Calibration protection using mechanical cover or with software
• Integral check-weighing application (in all versions)
• 10-28 V DC power supply
• Powers up to 8 x 350Ω or 16 x 700Ω load cells
• Five versions are available:
  • XT1000-SO: serial connections RS232 and RS485 (MODBUS RTU and ASCII)
  • XT1000-SO-AN: serial connections (as above) and analogue outputs (0-5V, 0-10V, 0-20mA, 4-20mA with galvanic isolation)
  • XT1000-SO-PB: serial connections (as above) and Profibus^® DP
  • XT1000-SO-PN: serial connections (as above) and PROFINET I/O
  • XT1000-SO-ETHERNET-IP: serial connections (as above) and EtherNet/IP^TM

Optional accessories:

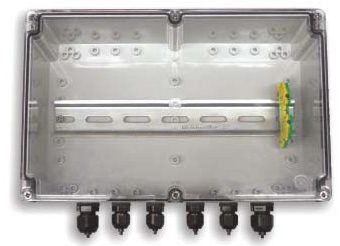

• XT-MOUNTING-BOX:
  • Surface mount, IP66 polycarbonate enclosure with integral Omega/DIN rail and pre-assembled earth terminal, for mounting of XT1000 or XT3000 transmitter and optional power supply (see XT-PS). Fitted with 4 x PG7 and 2 x PG9 cable glands. Impact resistance IK07. Transparent cover.
• XT-PS:
  • Power supply, DIN rail / Omega rail mounted. 100-240V AC, 50/60Hz, to 24V DC output. Refer to the XT1000 data sheet for more detailed information.

Make an enquiry about this class leading product.

Product conformity:

• 2014/30/EU (EMC Electromagnetic Compatibility)
  • EN 61000-6-3:2007/A1:2011
  • EN 55022 Class B
  • EN 45501:2015 (NAWI)
• OIML R76
